LEFENG Wholesale High-efficiency 132 Half-Cell Bifacial Solar Module

Short Description:

645-670W Monocrystalline Silicon Photovoltaic Module 210mm Solar Panel

Materials: high-quality A-grade solar cells. Surface made of high transmittance tempered solar glass with weatherproof coating; corrosion-resistant aluminum frame for extended outdoor use with pre-drilled mounting holes; IP68 junction box with 30cm long 4mm² double insulated solar cable.

Application: On-grid or off-grid for ecological houses, cottages, caravans, motorhomes, boats etc. for all needs around a self-sufficient and mobile power supply.

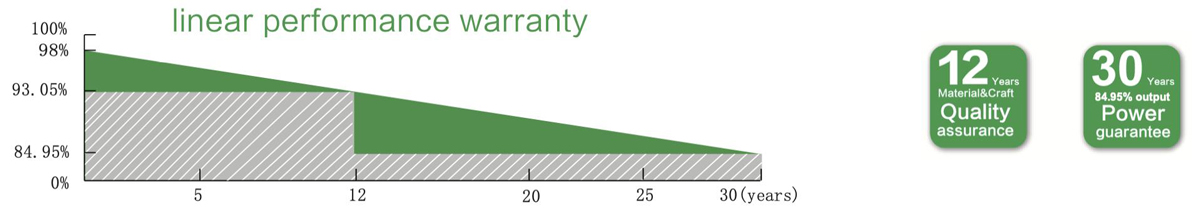

Warranty: 12 years PV module product warranty and 30 years linear warranty.


Product Detail

Product Tags

Product Detail

— Product introduction:
By incorporating cutting-edge bifacial PERC cells and double glass technology, the total power generation of our bifacial double glass module can be increased by an impressive 25% to 30%. This is achieved by capturing sunlight from both sides of the panel, allowing for more energy to be generated from the same amount of space. Additionally, our module is equipped with half-cell technology, which further improves power output and reduces costs. The half-cell technology also helps to mitigate hot spot risks, reducing shading losses and lowering internal resistance. By offering superior performance and efficiency, our module allows customers to generate more power while emitting fewer carbon emissions, thus maximizing their investment and benefiting the environment.

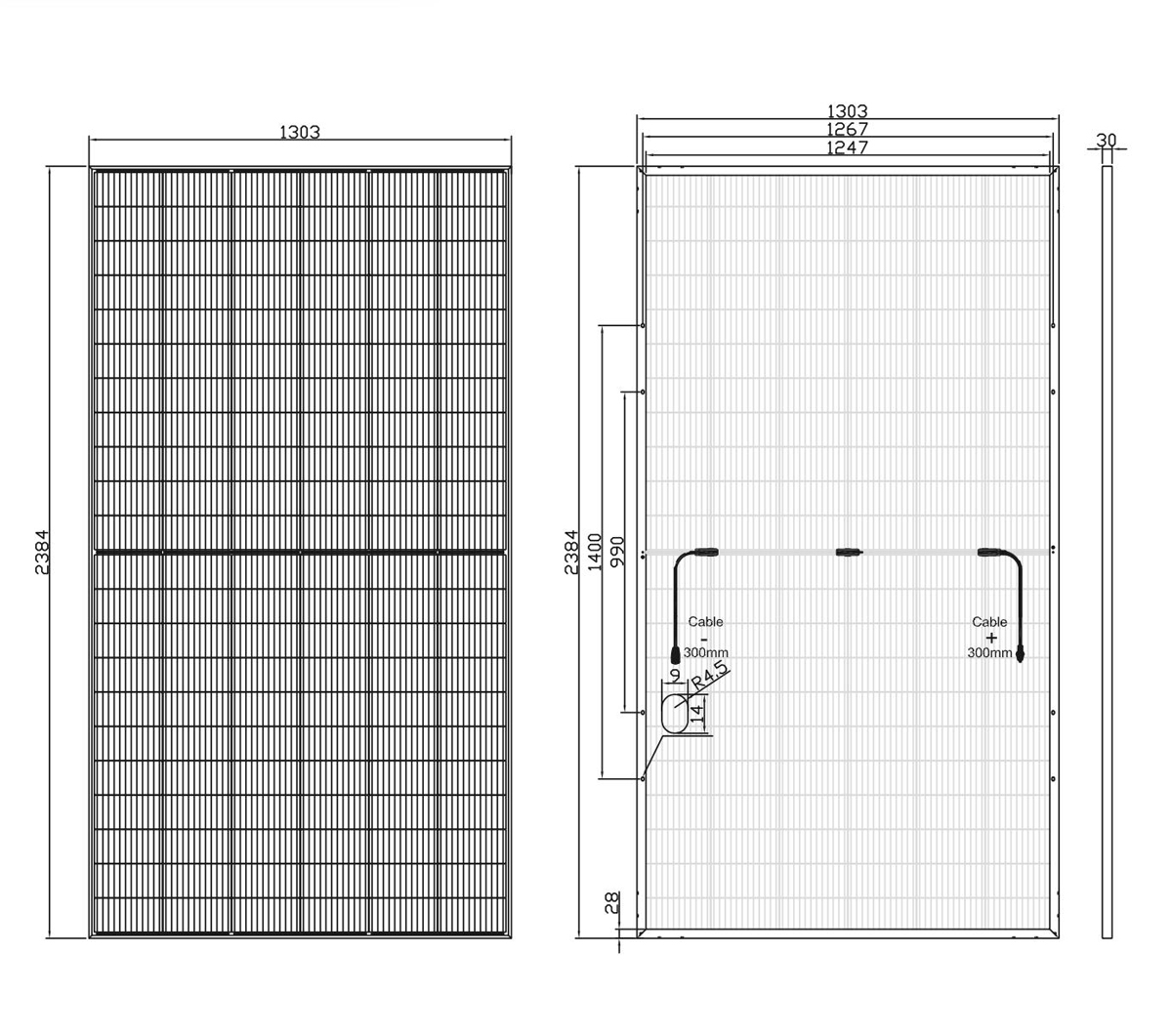

p-d-4

LFxxxM12-66H series

Product Size: 2384*1303*35mm
Carton Size: 2415*1120*1445mm;31PCS/CTN
20’: 124PCS
40HQ: 558PCS

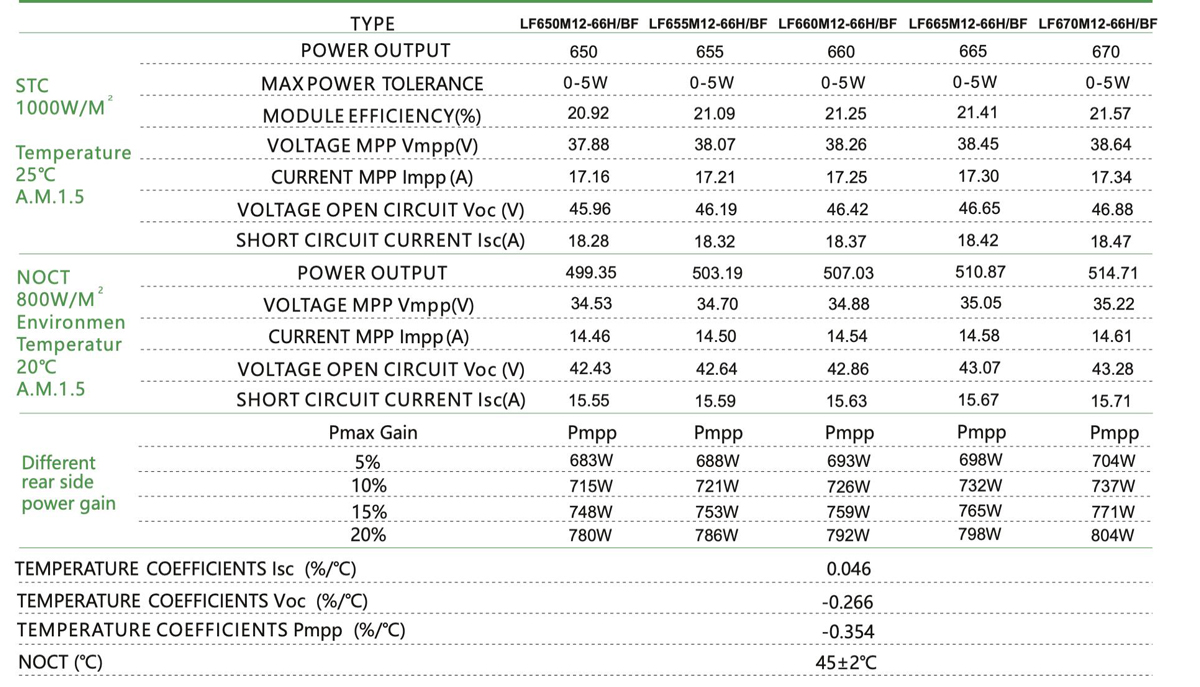

Parameter
Type

Maxpower
(W)

Dimension
(mm)

Cell
Type

Weight
(KG)

Imp(A)

Vmp(V)

Isc(A)

Voc(V)

LF670M12-66H/BF

670

2384*1303*30

210*105/6*11*2

38.5

17.34

38.64

18.47

46.88

LF665M12-66H/BF

665

2384*1303*30

210*105/6*11*2

38.5

17.30

38.45

18.42

46.65

LF660M12-66H/BF

660

2384*1303*30

210*105/6*11*2

38.5

17.25

38.26

18.37

46.42

LF655M12-66H/BF

655

2384*1303*30

210*105/6*11*2

38.5

17.21

38.07

18.32

46.19

LF650M12-66H/BF

650

2384*1303*30

210*105/6*11*2

38.5

17.16

37.88

18.28

45.96

LF645M12-66H/BF

645

2384*1303*30

210*105/6*11*2

38.5

17.11

37.70

18.22

45.73

p-d-1
p-d-2
p-d-3
p-d-5
p-d-6
p-d-7
