Perc 440~460W 166mm ALL BLACK Solar Panel PV Module

Short Description:

—High conversion efficiency: The solar panel has a built-in monocrystalline silicone solar panel that can convert solar energy into electricity

—Waterproof and durable: the solar panel is covered with EVA Film and Tempered Glass, which has good waterproof performance, can withstand harsh weather conditions, and is resistant to heavy cold and heat.

—Materials: high-quality A-grade solar cells. Surface made of high transmittance tempered solar glass with weatherproof coating; BLACK corrosion-resistant aluminum frame for extended outdoor use with pre-drilled mounting holes; IP68 junction box with 30cm long 4mm² double insulated solar cable


Product Detail

Product Tags

Product Detail

— Product introduction:

• Based on the half-cell technology, the module produces higher power output and effectively reduces the system cost; The half-cell technology helps to effectively alleviate the hot spot risk, reducing shading loss and lowering internal resistance
• High energy conversion: solar panels can effectively absorb the radiation heat of solar energy, greatly improve photoelectric conversion efficiency, energy saving and environmental protection. To maximize the customer value by more power yield generation and less carbon emission
• High-quality workmanship, high reliability, photovoltaic module with contact solar cells; Thanks to the double frame made of anodized aluminum, it is particularly scratch-resistant; The crystalline cells are embedded in a 3.2 mm thick, crystalline glass with low iron oxide and in a high-strength double layer film with high strength
• Application: On-grid or off-grid for ecological houses, cottages, caravans, motorhomes, boats etc. for all needs around a self-sufficient and mobile power supply.

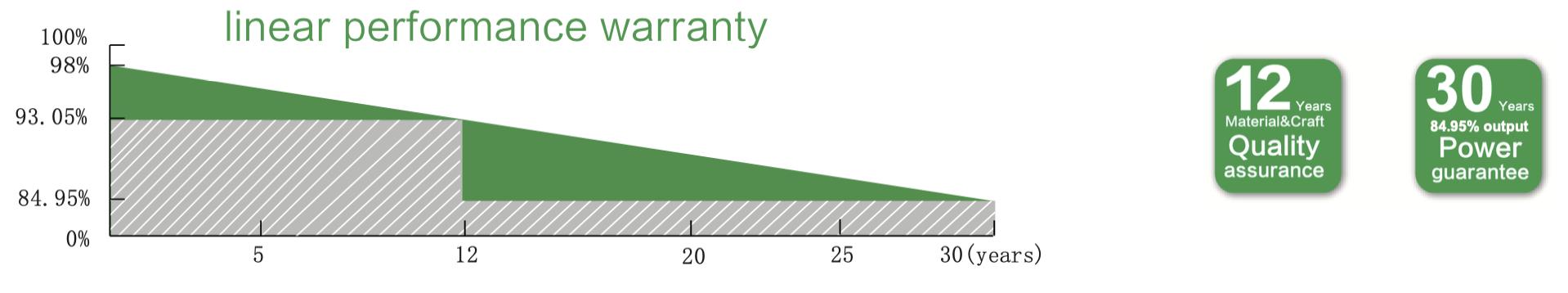

• Warranty: 12 years PV module product warranty and 30 years linear warranty

pp1

LFxxxM8-72HB series

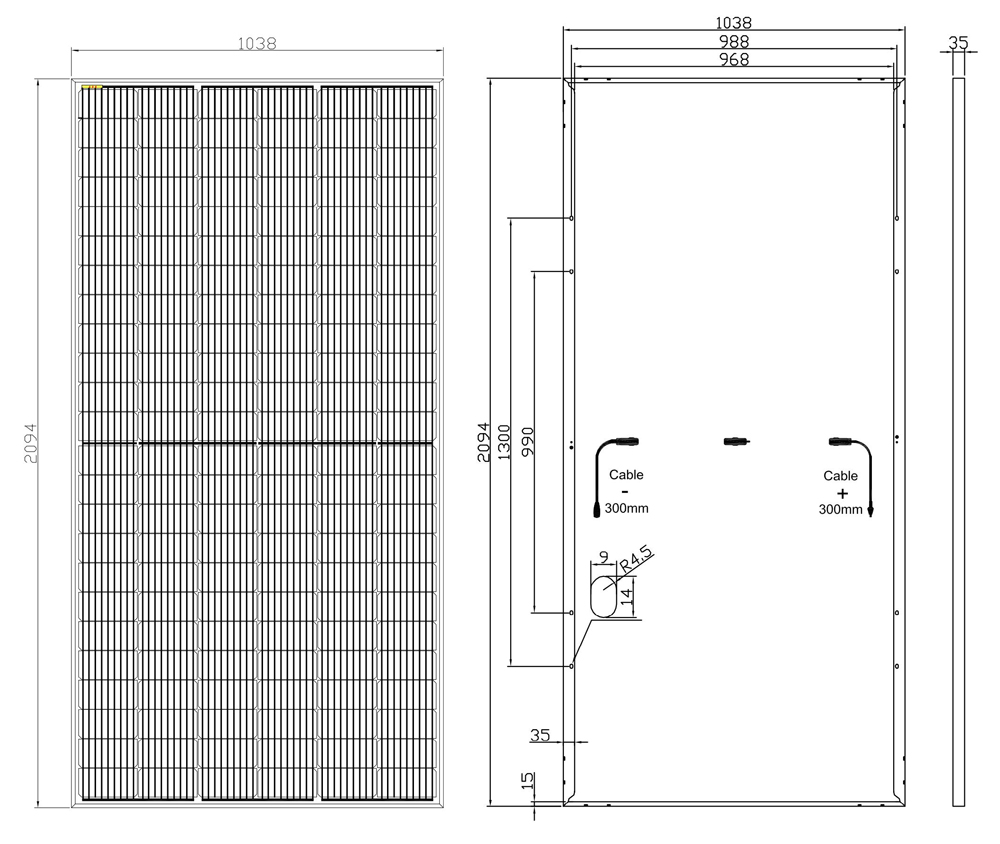

Product Size: 2094*1038*35mm
Carton Size: 2125*1120*1180mm;31PCS/CTN
20’: 265PCS
40HQ: 682PCS

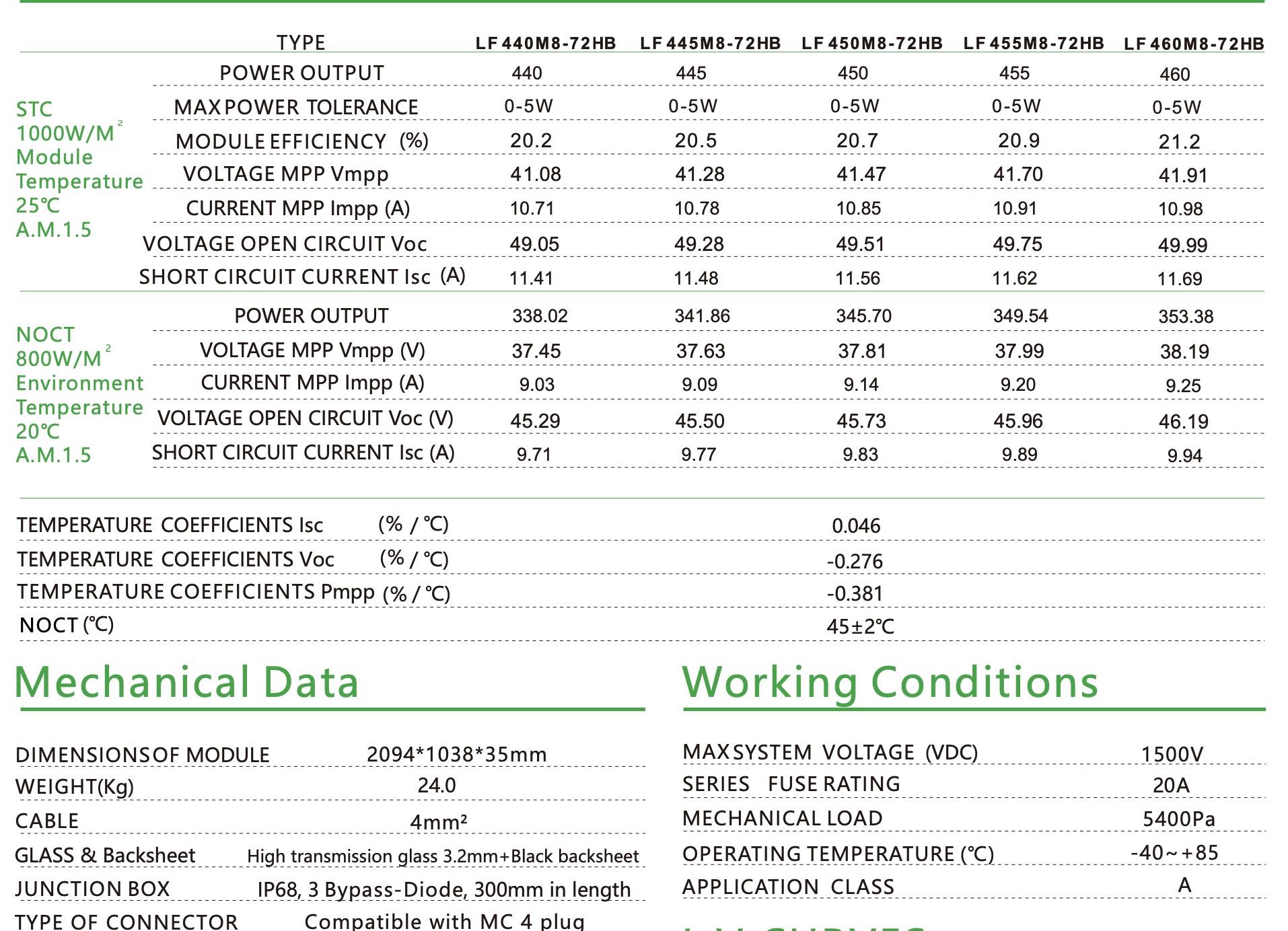

Parameter Type

Maxpower
(W)

Dimension
(mm)

Cell
Type

Weight
(KG)

Imp(A)

Vmp(V)

Isc(A)

Voc(V)

LF465M8-72H

465

2094*1038*35

166*83/6*12*2

24.0

11.04

42.12

11.76

50.24

LF460M8-72H

460

2094*1038*35

166*83/6*12*2

24.0

10.98

41.91

11.69

49.99

LF455M8-72H

455

2094*1038*35

166*83/6*12*2

24.0

10.91

41.70

11.62

49.75

LF450M8-72H

450

2094*1038*35

166*83/6*12*2

24.0

10.85

41.47

11.56

49.51

LF445M8-72H

445

2094*1038*35

166*83/6*12*2

24.0

10.78

41.28

11.48

49.28

LF440M8-72H

440

2094*1038*35

166*83/6*12*2

24.0

10.71

41.08

11.41

49.05

LF435M8-72H

435

2094*1038*35

166*83/6*12*2

24.0

10.64

40.88

11.33

48.84

LF430M8-72H

430

2094*1038*35

166*83/6*12*2

24.0

10.56

40.72

11.25

48.65

LF425M8-72H

425

2094*1038*35

166*83/6*12*2

24.0

10.49

40.51

11.17

48.49

LF420M8-72H

420

2094*1038*35

166*83/6*12*2

24.0

10.42

40.31

11.10

48.25

p-d-1
p-d-2
p-d-6
p-d-7
