LEFENG Versatile 60xCells Polycrystalline Silicon Solar Module Premium Quality 265~285W Photovoltaic Module 156mm Poly Solar Panel

Short Description:

• Premium quality: polycrystalline silicon solar panels have a high conversion rate, high efficiency, good reliability and a long service life.

• Waterproof resin encapsulation: good sealing performance, stable performance, free from rain and snow and widely used in outdoor area.

• Sufficient electric energy: absorb sunlight and convert it directly or indirectly into electric energy by photoelectric or photochemical effects. High conversion rate, high efficiency, excellent low light effect.

• Parallel connection use: if the voltage of the solar panel corresponds to your storage battery. To speed up the charge rate, you can switch two or more same solar panels together in parallel.

• Versatile purpose: very suitable for small home projects, scientific projects, electronic applications and other DIY projects with solar energy. Suitable for solar toys, lawn lights, wall lamps, radios, solar miniature water pumps, etc. for charging small DC batteries.

• Warranty: 12 years PV module product warranty and 25 years linear warranty

Send email to us

Product Detail

Product Tags

Product Detail

— Product introduction:

Adopts waterproof resin encapsulation that has good sealing performance and stable performance and is not damaged by rain or snow.
High conversion rate, high efficiency; Excellent low light effect; High quality epoxy resin with high light transmission. The unique process makes the components beautiful, strong and wind resistant, easy to install
Use: solar garden lighting, small household lighting systems, solar street lighting, outdoor solar advertising, suitable for various low power electrical appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans and other low power appliances.

Electrical Parameters

Performance at STC (STC: 1000W/m2 Irradiation,25°C Module Temperature and and AM 1.5g Spectrum)

Maximum Power(W)	265	270	275	280	285
Optimum Power Voltage(Vmp)	31.48	31.61	31.74	31.82	31.88
Optimum Operating Current(Imp)	8.42	8.54	8.66	8.80	8.94
Open Circuit Voltage(Voc)	37.38	37.54	37.70	37.86	37.92
Short Circuit Current(Isc)	8.98	9.14	9.27	9.42	9.56
Module Efficiency (%)	16.3	16.6	16.9	17.2	17.5
Tolerance Wattage(W)	0~+5
NMOT	45°C +/-2°C
Maximum System Voltage(VDC)	1000

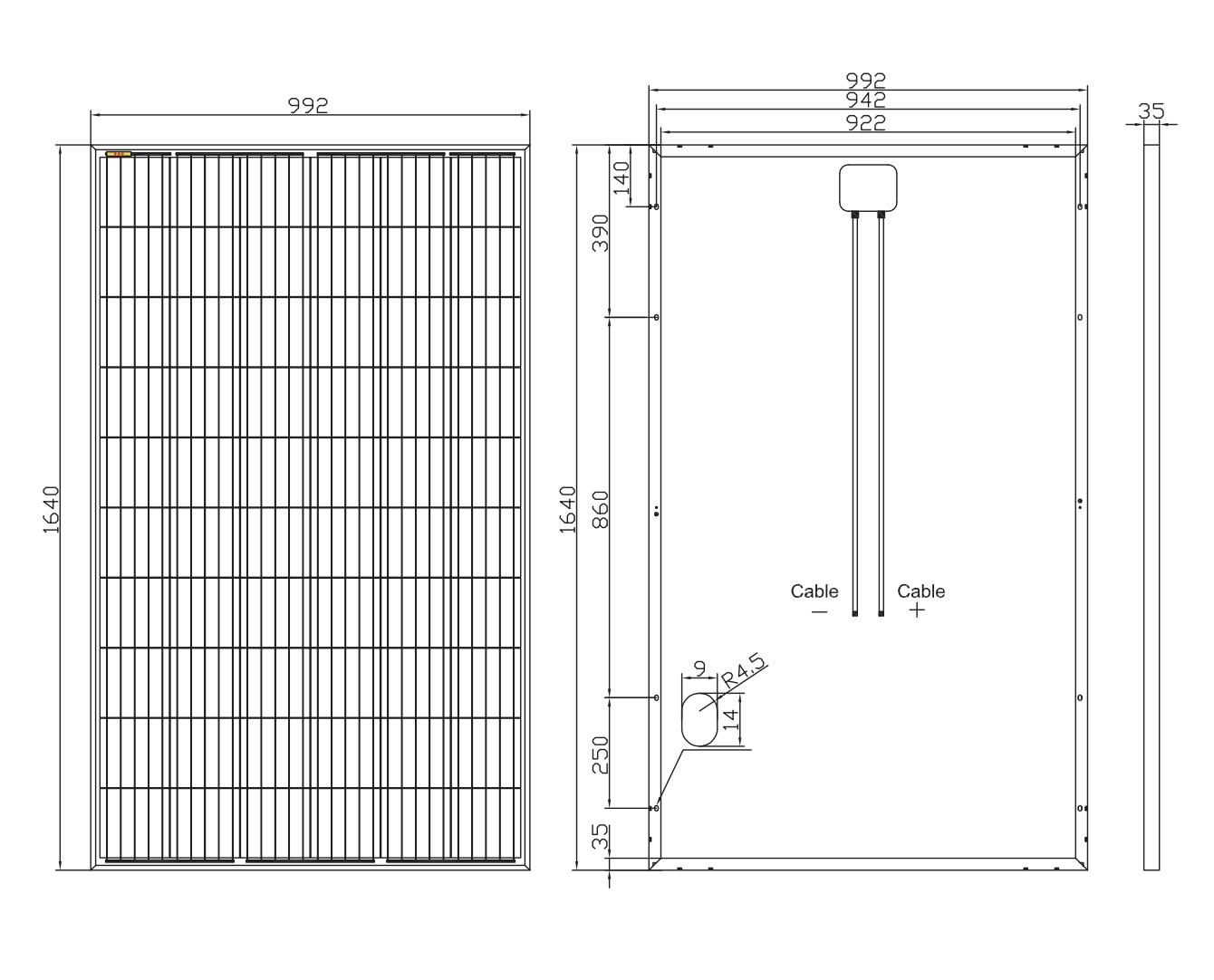

Components & Mechanical Data

Solar Cell	156.75*156.75 Poly
Number of Cell(pcs)	6*10
Size of Module(mm)	164099235
Front Glass Thikness(mm)	3.2
Surface Maximum Load Capacity	5400Pa
Allowable Hail Load	23m/s ,7.53g
Weight Per Piece(KG)	18.0
Junction Box Type	Protection class IP67,3 diodes
Cable & Connector Type	900mm/4mm²；MC4 Compatible
Frame(Material Corners,etc.)	35#
Temperature Range	-40°C to +85°C
Series Fuse Rating	15A
Standard Test Conditions	AM1.5 1000W/m² 25°C
