LEFENG High-efficiency Grade A 120 Half-Cell Monocrystalline Silicone Photovoltaic Module 365~385W 166mm Waterproof Solar Panel PV Module
Product Detail
— Product introduction:
Using half-cell technology, the module offers increased power output and reduced system cost, while also minimizing hot spot risk, shading loss, and internal resistance.
With high energy conversion rates, solar panels effectively absorb solar radiation and improve photoelectric conversion efficiency, promoting energy conservation and environmental protection. This maximizes customer value by generating more power yield and reducing carbon emissions.
Suitable for both on-grid and off-grid applications, including ecological houses, cottages, caravans, motorhomes, boats, and other self-sufficient and mobile power supply needs.

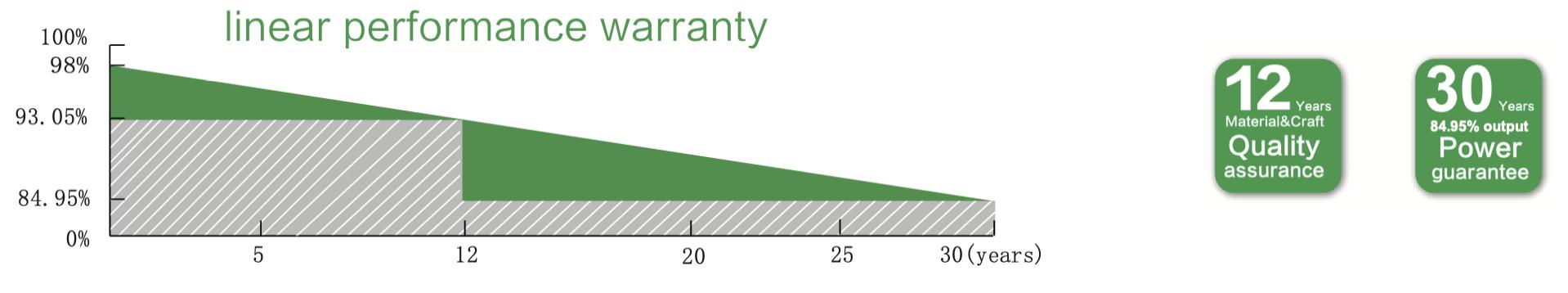

Comes with a 12-year PV module product warranty and 30-year linear warranty to ensure long-lasting performance and customer satisfaction.
Electrical Parameters
Performance at STC (STC: 1000W/m2 Irradiation,25°C Module Temperature and and AM 1.5g Spectrum)
| Maximum Power(W) |
365 |
370 |
375 |
380 |
385 |
| Optimum Power Voltage(Vmp) |
34.14 |
34.35 |
34.53 |
34.80 |
34.97 |
| Optimum Operating Current(Imp) |
10.69 |
10.77 |
10.86 |
10.92 |
11.01 |
| Open Circuit Voltage(Voc) |
40.83 |
41.08 |
41.28 |
41.59 |
41.79 |
| Short Circuit Current(Isc) |
11.38 |
11.47 |
11.57 |
11.63 |
11.73 |
| Module Efficiency (%) |
20.0 |
20.3 |
20.6 |
20.9 |
21.1 |
| Tolerance Wattage(W) |
0~+5 |
||||
| NMOT |
43°C +/-3°C |
||||
| Maximum System Voltage(VDC) |
1500 |
||||
Electrical Data (NOCT: 800W/m2 Irradiation,20°C Ambient Temperature and and Wind Speed 1m/s)
| Maximum Power(W) |
280.41 |
284.25 |
288.08 |
291.93 |
295.77 |
| Optimum Power Voltage(Vmp) |
31.12 |
31.31 |
31.47 |
31.72 |
31.87 |
| Optimum Operating Current(Imp) |
9.01 |
9.08 |
9.15 |
9.20 |
9.28 |
| Open Circuit Voltage(Voc) |
37.70 |
37.93 |
38.11 |
38.39 |
38.58 |
| Short Circuit Current(Isc) |
9.69 |
9.76 |
9.84 |
9.89 |
9.98 |
Components & Mechanical Data
| Solar Cell | 166*83 Mono |
| Number of Cell(pcs) | 6*10*2 |
| Size of Module(mm) | 1755*1038*35 |
| Front Glass Thikness(mm) | 3.2 |
| Surface Maximum Load Capacity | 5400Pa |
| Allowable Hail Load | 23m/s ,7.53g |
| Weight Per Piece(KG) | 20.0 |
| Junction Box Type | Protection class IP68,3 diodes |
| Cable & Connector Type | 300mm/4mm2；MC4 Compatible |
| Frame(Material Corners,etc.) | 35# |
| Temperature Range | -40°C to +85°C |
| Series Fuse Rating | 20A |
| Standard Test Conditions | AM1.5 1000W/m2 25°C |
Temperature Coefficients
| Temperature Coefficients of Isc(%)℃ |
+0.046 |
| Temperature Coefficients of Voc(%)℃ |
-0.276 |
| Temperature Coefficients of Pm(%)℃ |
-0.381 |
Packing
| Module per Pallet | 31PCS |
| Module per Container(20GP) | 186pcs |
| Module per Container(40HQ) | 806pcs |

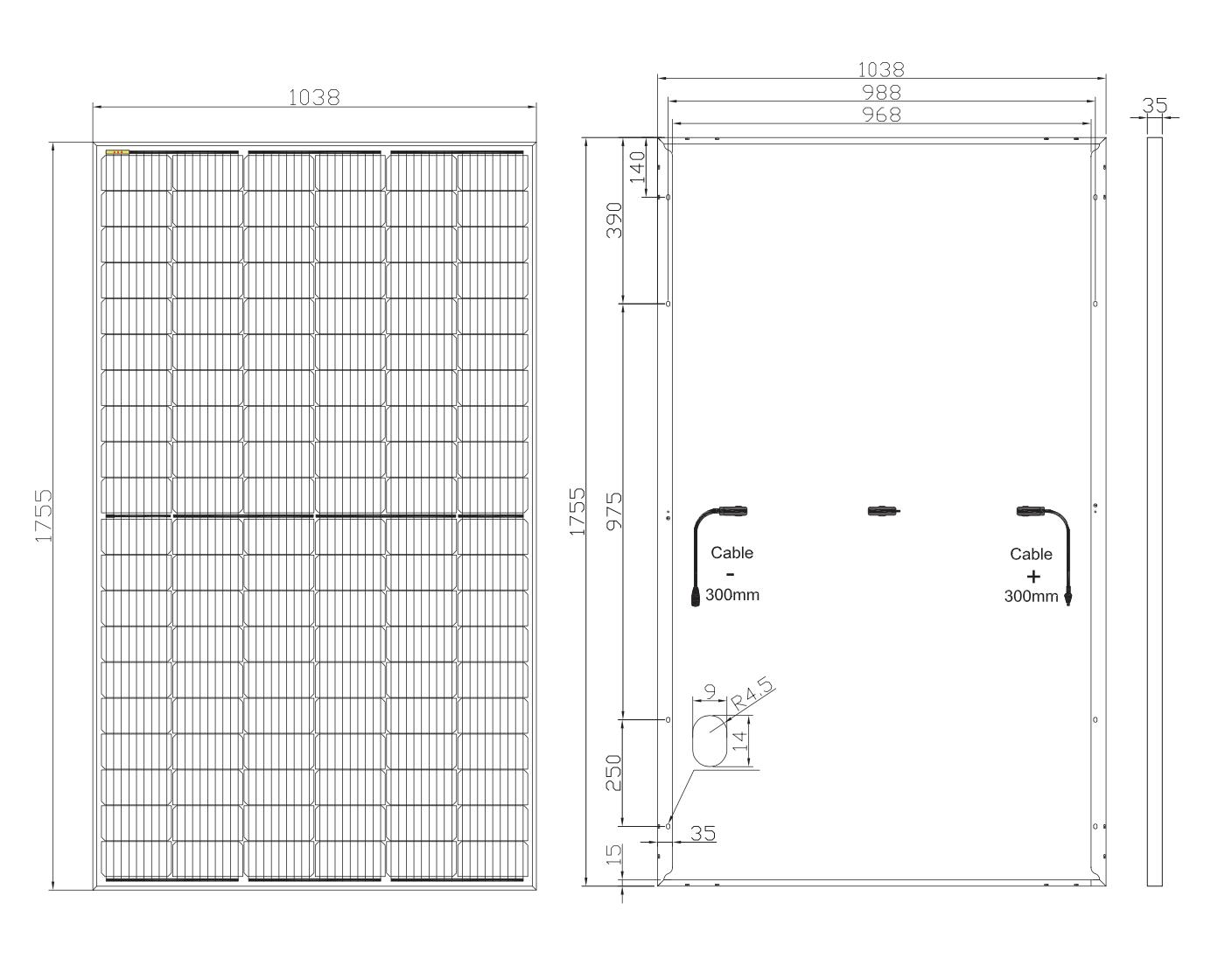

Engineering Drawings
