LEFENG 650~670W TUV Certificated High-efficiency Grade A 132 Half-Cell 210mm Monocrystalline Silicone Photovoltaic Module Weatherproof Solar Panel PV Module

Short Description:

High conversion efficiency: The solar panel has a built-in monocrystalline silicone solar panel that can convert solar energy into electricity

Half-cut Cells Technology: Using half-cut cells technology increases performance efficiency. Compared with the Standard module, the current is reduced by half, and the resistance loss is reduced, so the heat is reduced. Besides the conversation performance is more stable and the service life is longer. Less shadow occlusion, more working area. Based on the half-cell technology, the module produces higher power output and effectively reduces the system cost; The half-cell technology helps to effectively alleviate the hot spot risk, reducing shading loss and lowering internal resistance

Send email to us

Product Detail

Product Tags

Product Detail

Waterproof and durable: the solar panel is covered with EVA Film and Tempered Glass, which has good waterproof performance, can withstand harsh weather conditions, and is resistant to heavy cold and heat.

Materials: high-quality A-grade solar cells. Surface made of high transmittance tempered solar glass with weatherproof coating; corrosion-resistant aluminum frame for extended outdoor use with pre-drilled mounting holes; IP68 junction box with 30cm long 4mm² double insulated solar cable

— Product introduction:

• High energy conversion: solar panels can effectively absorb the radiation heat of solar energy, greatly improve photoelectric conversion efficiency, energy saving and environmental protection. To maximize the customer value by more power yield generation and less carbon emission
• Suitable for multiple occasion: compatible with on-grid and off-grid inverters, the solar panel is suitable for powering the house or for outdoor use. Corrosion-resistant aluminum material can withstand the changing outdoor environment and prolong its service life. It is easy to use and mount (pre-drilled holes on the back of the panel), and sophisticated to use with your RVs, boats, and other outdoor equipment.
• Durable & User Friendly---The sturdy panel can withstand high wind (2400 Pa) and snow loads (5400 Pa) and have excellent performance in low-light environments. IP68 Rated Waterproof Junction Box can isolate environmental particles and low-pressure water jets. Diodes are pre-installed in the junction box, with a pair of pre-attached 3ft Cables. Pre-drilled holes on the back of the panel allow you to quickly install solar panels without using heavy tools.

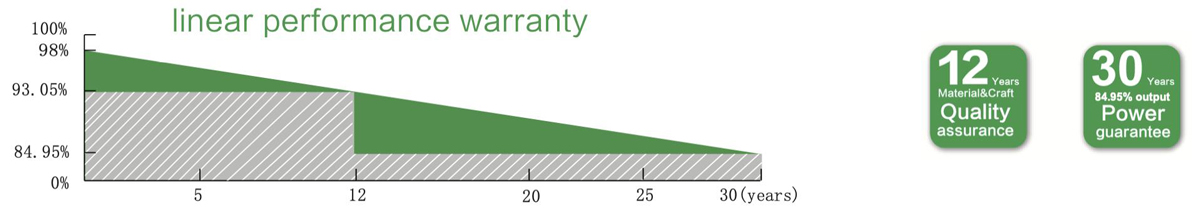

• Warranty: 12 years PV module product warranty and 30 years linear warranty

Electrical Parameters

Performance at STC (STC: 1000W/m2 Irradiation,25°C Module Temperature and and AM 1.5g Spectrum)

Maximum Power(W)	650	655	660	665	670
Optimum Power Voltage(Vmp)	37.75	37.91	38.08	38.28	38.43
Optimum Operating Current(Imp)	17.23	17.28	17.33	17.37	17.43
Open Circuit Voltage(Voc)	45.68	45.87	46.03	46.24	46.42
Short Circuit Current(Isc)	18.35	18.40	18.46	18.50	18.56
Module Efficiency (%)	20.9	21.1	21.3	21.4	21.6
Tolerance Wattage(W)	0~+5
NMOT	43°C +/-3°C
Maximum System Voltage(VDC)	1500

Electrical Data (NOCT: 800W/m2 Irradiation,20°C Ambient Temperature and and Wind Speed 1m/s)

Maximum Power(W)	499.35	503.19	507.03	510.87	514.71
Optimum Power Voltage(Vmp)	34.41	34.56	34.71	34.89	35.03
Optimum Operating Current(Imp)	14.51	14.56	14.61	14.65	14.69
Open Circuit Voltage(Voc)	42.17	42.35	42.50	42.69	42.86
Short Circuit Current(Isc)	15.60	15.65	15.70	15.75	15.79

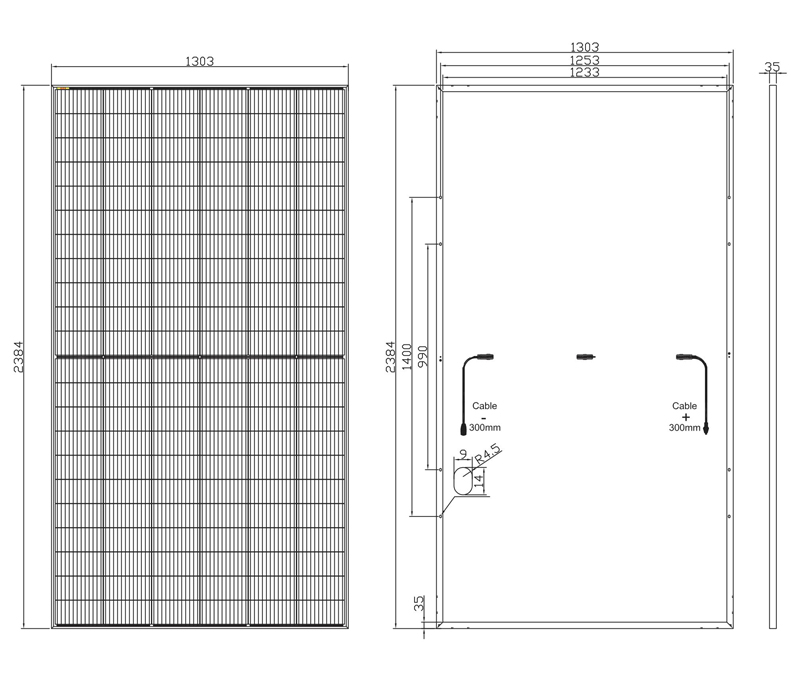

Components & Mechanical Data

Solar Cell	210*105 Mono
Number of Cell(pcs)	6112
Size of Module(mm)	2384130335
Front Glass Thikness(mm)	3.2
Surface Maximum Load Capacity	5400Pa
Allowable Hail Load	23m/s ,7.53g
Weight Per Piece(KG)	34.0
Junction Box Type	Protection class IP68,3 diodes
Cable & Connector Type	300mm/4mm²；MC4 Compatible
Frame(Material Corners,etc.)	35#
Temperature Range	-40°C to +85°C
Series Fuse Rating	30A
Standard Test Conditions	AM1.5 1000W/m² 25°C
