LEFENG 590~610W TUV Certificated High-efficiency Grade A 120 Half-Cell 210mm Monocrystalline Silicone Photovoltaic Module Weatherproof Solar Panel PV Module

Short Description:

The solar panel features a monocrystalline silicone solar panel with built-in half-cut cells technology, which increases performance efficiency by reducing current and resistance loss, resulting in lower heat and more stable conversion performance with a longer service life. This technology also reduces shadow occlusion and increases the working area. Based on this technology, the module produces higher power output and effectively reduces system cost while alleviating the hot spot risk, reducing shading loss, and lowering internal resistance.

Send email to us

Product Detail

Product Tags

Product Detail

The solar panel is designed to be waterproof and durable, with a protective layer of EVA Film and Tempered Glass that can withstand harsh weather conditions and resist heavy cold and heat. The panel is constructed with high-quality A-grade solar cells and features a surface made of high-transmittance tempered solar glass with a weatherproof coating. The frame is made of corrosion-resistant aluminum and includes pre-drilled mounting holes for extended outdoor use. The panel is equipped with an IP68 junction box and a 30cm long 4mm² double insulated solar cable.

— Product introduction:

• The solar panel boasts high energy conversion efficiency, allowing for the effective absorption of solar radiation heat and increased photoelectric conversion efficiency. This leads to greater power yield generation and less carbon emission, maximizing customer value.
• The panel is suitable for use in various settings, as it is compatible with on-grid and off-grid inverters. Its corrosion-resistant aluminum material can withstand harsh outdoor environments and has pre-drilled mounting holes for easy installation. It is perfect for powering homes, RVs, boats, and other outdoor equipment.
• The panel is both durable and user-friendly. It can withstand high wind loads (2400 Pa) and snow loads (5400 Pa), performs well in low-light environments, and has an IP68 rated waterproof junction box that isolates environmental particles and low-pressure water jets. Additionally, diodes are pre-installed in the junction box, and a pair of pre-attached 3ft cables are included.

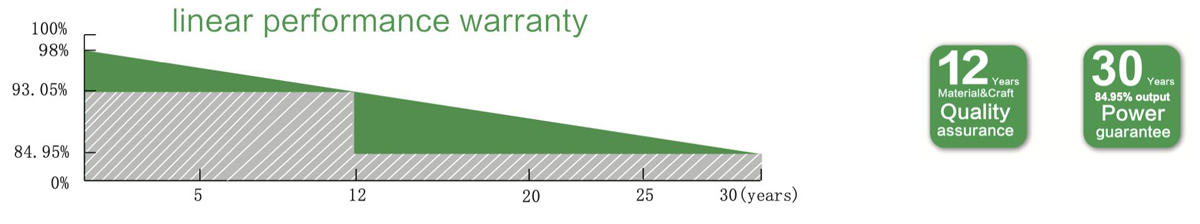

• The solar panel comes with a 12-year PV module product warranty and a 30-year linear warranty.

Electrical Parameters

Performance at STC (STC: 1000W/m2 Irradiation,25°C Module Temperature and and AM 1.5g Spectrum)

Maximum Power(W)	590	595	600	605	610
Optimum Power Voltage(Vmp)	34.14	34.35	34.54	34.75	34.92
Optimum Operating Current(Imp)	17.28	17.32	17.37	17.41	17.47
Open Circuit Voltage(Voc)	41.44	41.64	41.84	42.04	42.25
Short Circuit Current(Isc)	18.40	18.45	18.50	18.54	18.61
Module Efficiency (%)	20.9	21.0	21.2	21.4	21.6
Tolerance Wattage(W)	0~+5
NMOT	43°C +/-3°C
Maximum System Voltage(VDC)	1500

Electrical Data (NOCT: 800W/m2 Irradiation,20°C Ambient Temperature and and Wind Speed 1m/s)

Maximum Power(W)	453.25	457.09	460.93	464.78	468.62
Optimum Power Voltage(Vmp)	31.12	31.31	31.49	31.68	31.83
Optimum Operating Current(Imp)	14.56	14.60	14.64	14.67	14.72
Open Circuit Voltage(Voc)	38.26	38.44	38.63	38.81	39.01
Short Circuit Current(Isc)	15.66	15.69	15.74	15.77	15.83

Components & Mechanical Data

Solar Cell	210*105 Mono
Number of Cell(pcs)	6102

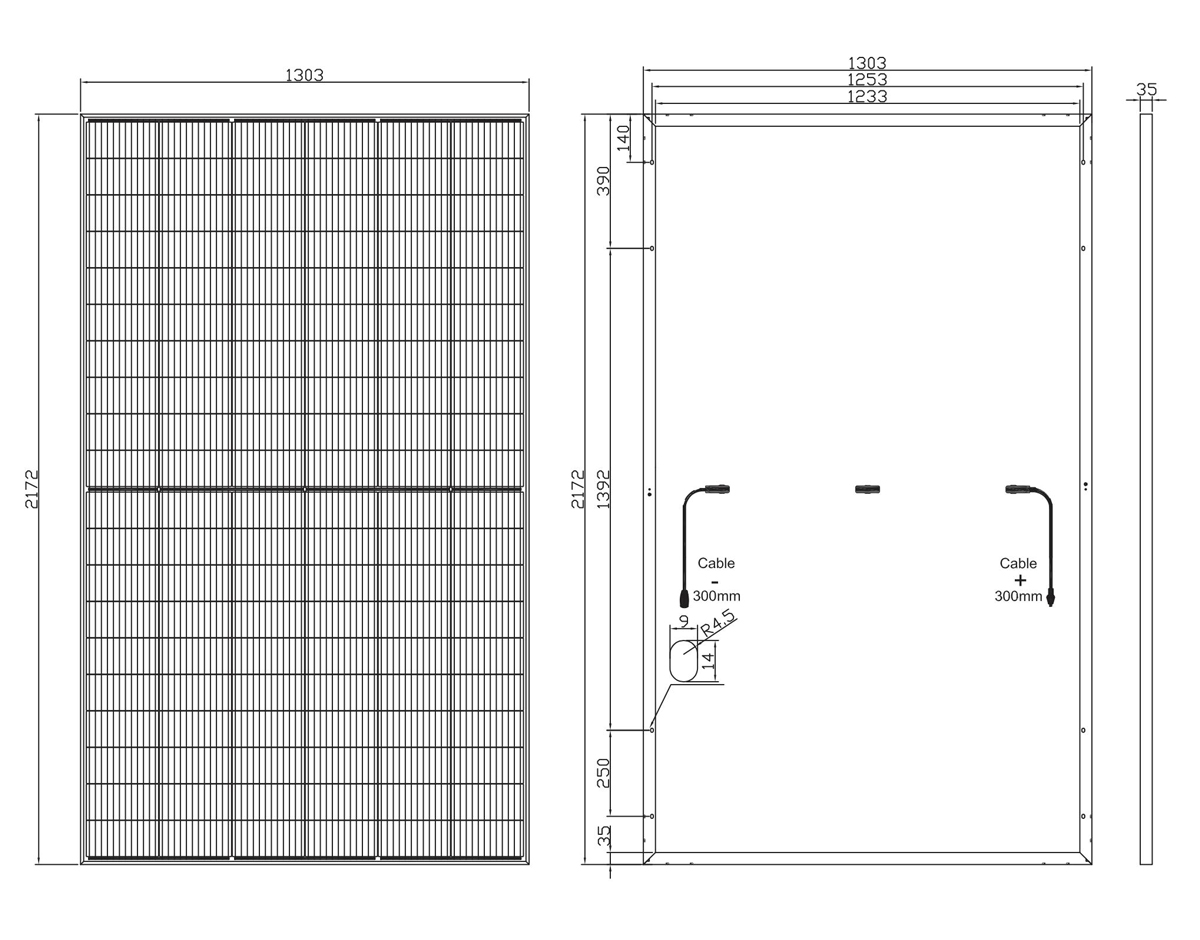

Size of Module(mm)	2172130335
Front Glass Thikness(mm)	3.2
Surface Maximum Load Capacity	5400Pa
Allowable Hail Load	23m/s ,7.53g
Weight Per Piece(KG)	31.5
Junction Box Type	Protection class IP68,3 diodes
Cable & Connector Type	300mm/4mm²；MC4 Compatible
Frame(Material Corners,etc.)	35#
Temperature Range	-40°C to +85°C
Series Fuse Rating	30A
Standard Test Conditions	AM1.5 1000W/m² 25°C
