LEFENG 4PCS Monocrystalline Silicon Solar Panel Adjustable Wall-mounted ON-Grid Photovoltaic Module Weatherproof Solar Energy KIT PV Module Solar System With 300W Micro Inverter

Short Description:

Remarkable Efficiency: solar cells with A+ class monocrystalline solar cells and offers an ideal output: 100 watts per piece.

Anti-oxidation, high light transmission and high conversion rate; High conversion efficiency, good output efficiency, low light efficiency, light weight, strong applicability.

The solar panel kit contains a bypass diode. Its circuit adopts input overcurrent protection and reverses the protective design, which is safer.

With the tilting built-in stands, you can get up to 25% more solar energy than when lying flat.

Send email to us

Product Detail

Product Tags

Product Detail

— Product introduction:
Based on the half-cell technology, the module produces higher power output and effectively reduces the system cost; The half-cell technology helps to effectively alleviate the hot spot risk, reducing shading loss and lowering internal resistance
Materials: high-quality A-grade solar cells. Surface made of high transmittance tempered solar glass with weatherproof coating; corrosion-resistant aluminum frame for extended outdoor use with pre-drilled mounting holes;
Solar panel is made up of high quality solar cell with high efficiency and transmission rate, low iron tempered glass, anti-aging EVA, high flame resistant TPT and anodized aluminum alloy.

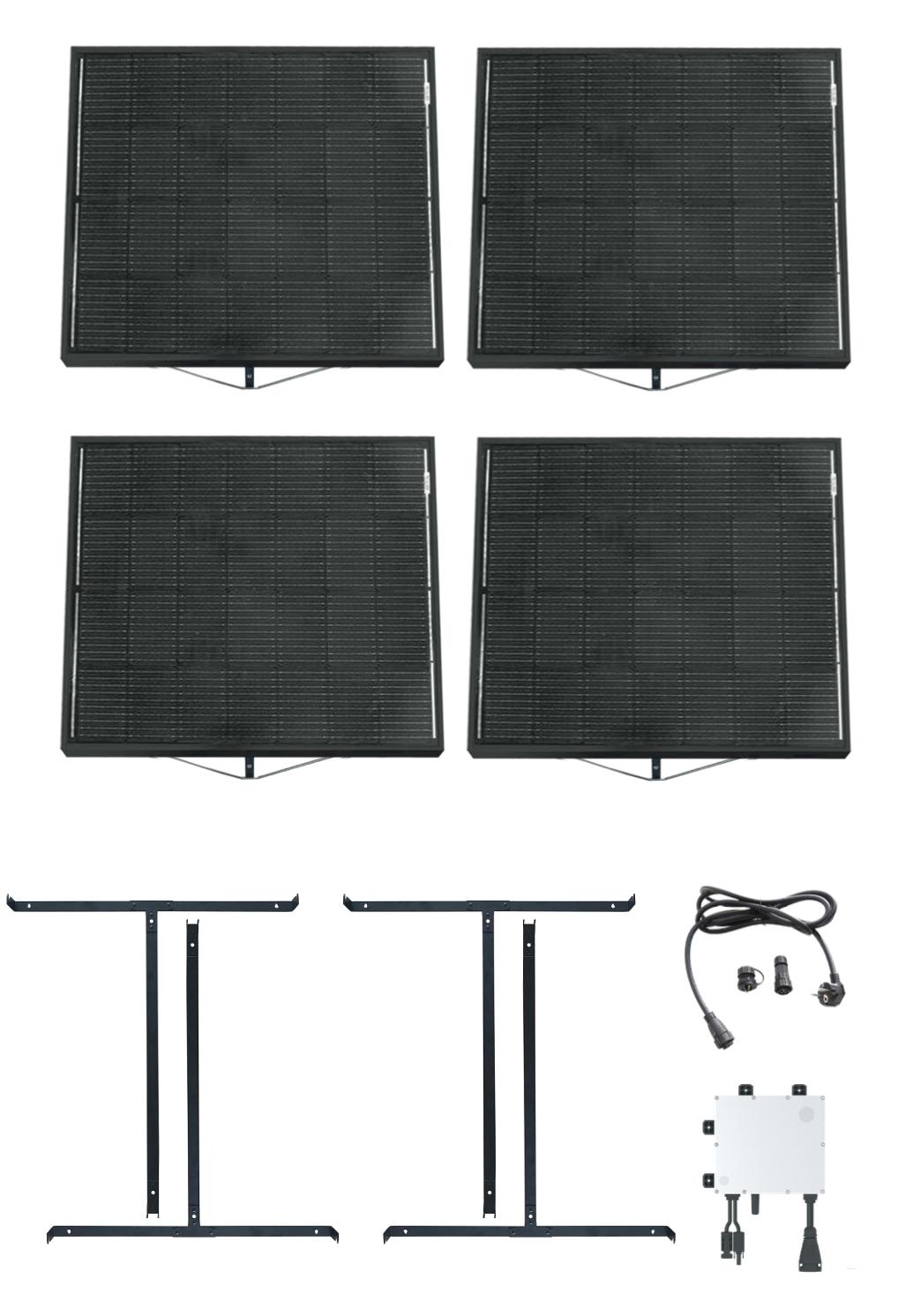

LEFENG solar system is equipped with 4x100 W monocrystalline silicon solar panels, a EU plug with AC cable 1.5mm2x3, 5M length with connectors and a 300w micro inverter
Low maintenance costs: Solar photovoltaic panels do not have too many complex electrical components,so they rarely break or require maintenance at all times to keep them running optimally.

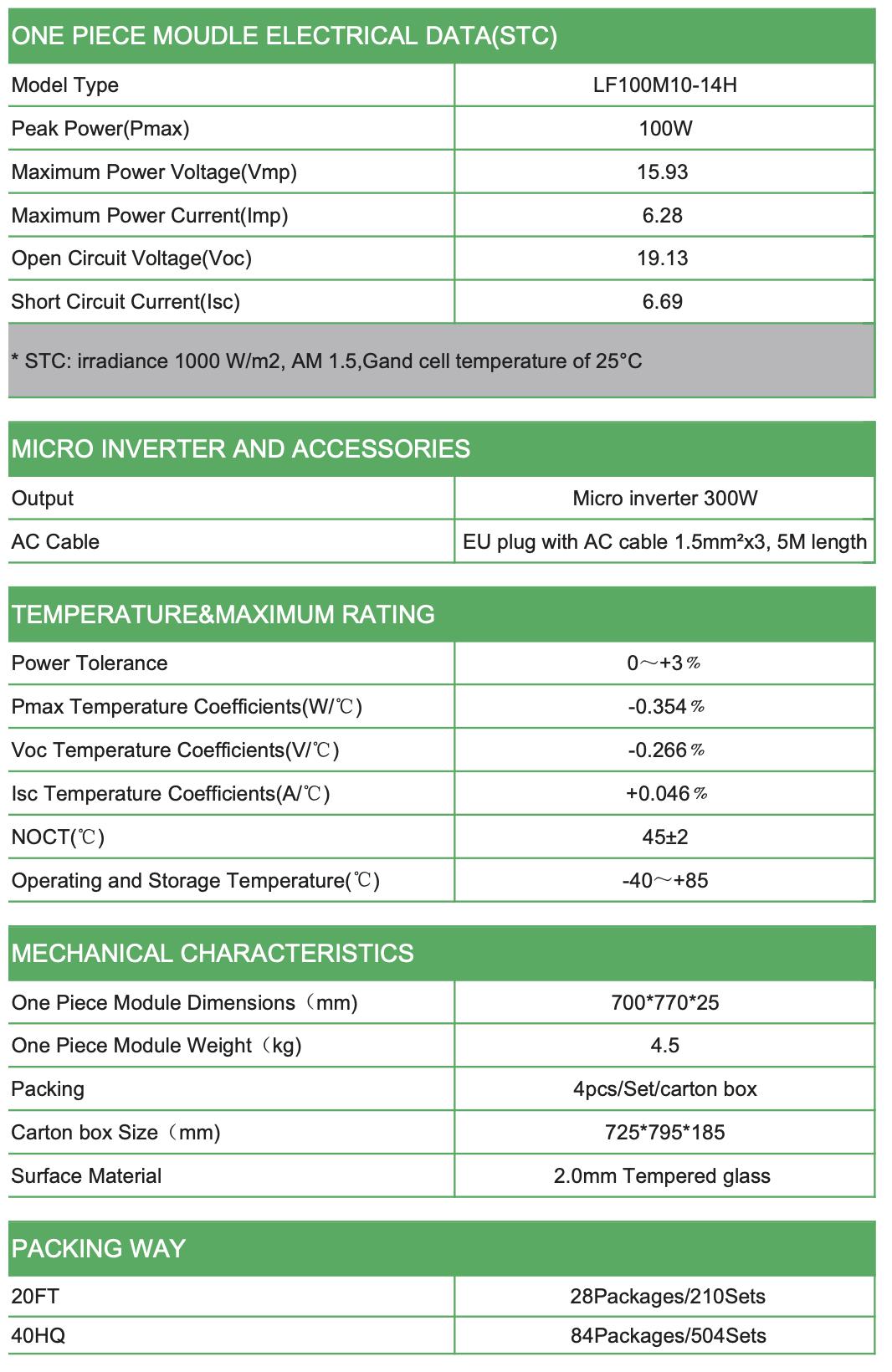

—Feature(tested at STC:1000W/m2;AM 1.5;Cell temperature 25°C):
Model Type: LF100M10-14H
Weight: about 4.50 kg per piece
Dimensions: 700mm x 770mm x 25mm per piece
Rated Maximum Power (Pmax): 100 W per piece
Voltage at Pmax (Vmp): 15.93 V
Current at Pmax (Imp): 6.28 A
Open Circuit Voltage (Voc): 19.13 V
Short Circuit Current (Isc): 6.69 A
Operating & Storage Temperature: -40 ~ +85 °C
